Why does Nvidia's NVHBM matter for memory performance?

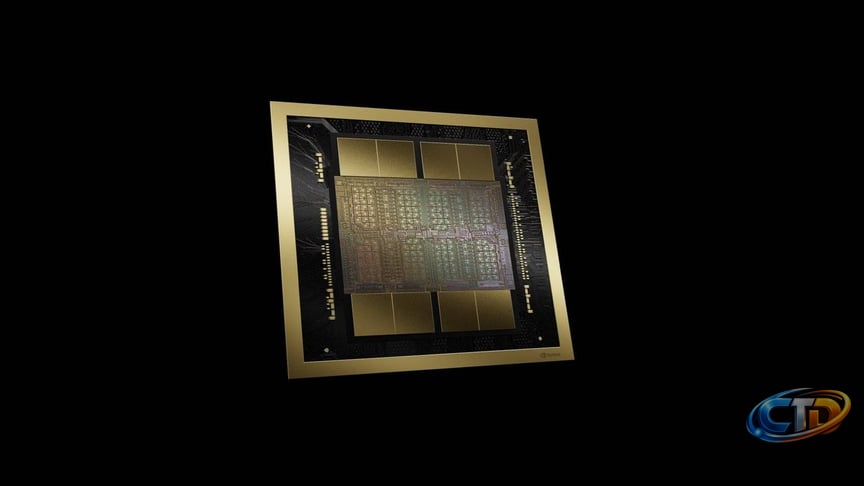

Nvidia's NVHBM memory represents a significant rethinking of High-Bandwidth Memory (HBM) architecture by relocating the memory controller from the GPU or accelerator chip to the base die of the HBM stack itself. This design shift can potentially improve memory bandwidth by about 30%, reduce power consumption by 15%, and free up 25% more GPU die area compared to the upcoming standard HBM4E memory.
For users and developers focused on demanding tasks like AI model training or high-end graphics processing, these improvements could translate to faster data throughput and more efficient energy use, addressing current bandwidth bottlenecks that limit performance scaling in frontier-level computing applications.
How does NVHBM differ from traditional HBM architectures?
Traditional HBM solutions separate responsibilities: a memory vendor produces the stacked DRAM and base die, while the GPU or accelerator incorporates the memory controller on its own chip. Communication between the two relies on a wide, parallel bus standardized by JEDEC, which limits speed and consumes significant power.
NVHBM changes this by embedding Nvidia's proprietary memory controller into the HBM base die itself. This eliminates the wide parallel interface in favor of a narrower, serialized inter-die link between the memory stack and GPU. Such a shift reduces the physical interface and support circuitry on the GPU die, opening up space for additional compute units and lowering the effective power draw of memory communication.
While the concept of integrating the memory controller into the stack isn't unique—similar approaches from other vendors claim comparable benefits—Nvidia's strength lies in its distribution and integration through its NVLink Fusion program, potentially enabling a cohesive ecosystem aligned with its GPUs and AI accelerators.
Who will benefit from NVHBM and when could it become available?
Currently, NVHBM is part of Nvidia's NVLink Fusion program designed to connect third-party accelerators via a specialized platform. Only select partners, such as Amazon's Annapurna Labs, have been publicly named as participants, and no specific Nvidia products have been announced with native NVHBM support yet.
Moreover, while Nvidia's NVHBM shows performance improvements over HBM4E—a future JEDEC standard—HBM4E itself is still in sampling and anticipated to see volume production no earlier than 2027. NVHBM might materialize significantly later, suggesting it will first impact specialized AI infrastructure or high-end accelerators rather than immediate consumer GPUs.
For buyers and system builders, this means NVHBM is not an option for now but could shape the future of GPU and AI memory performance, especially for workloads constrained by current bandwidth and power limitations.
Key takeaways for those investing in memory technology today
Nvidia's NVHBM highlights an innovative approach to increasing memory bandwidth and energy efficiency by changing the physical architecture of HBM. While promising on paper, its real-world adoption depends on Nvidia's ecosystem partners and the rollout of compatible hardware, which remains limited and uncertain in timing.
For most users and enterprises, HBM4E standard memory will be the prevalent high-bandwidth memory choice in the near future. NVHBM may find niche use in advanced AI accelerators first before broader availability. Keeping an eye on developments in NVLink Fusion and Nvidia's future GPU generations will be essential for anticipating when this technology might practically impact memory performance in computing devices.
