What does building a GPU from thousands of microcontrollers mean?

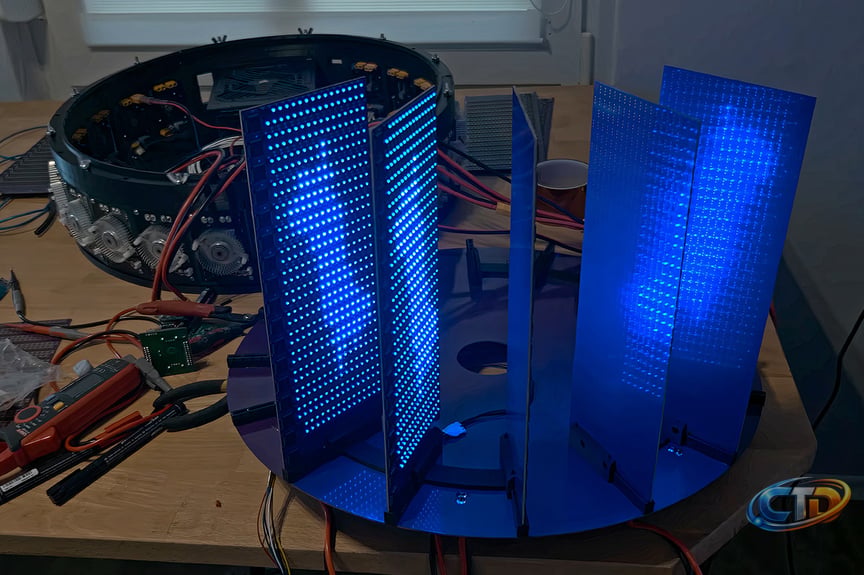

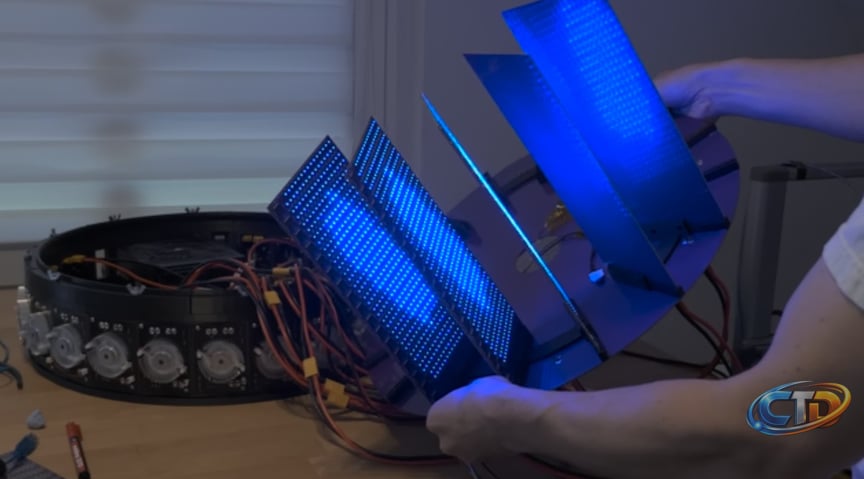

A DIY engineer constructed a graphics processing unit by linking 8,192 RISC-V CH570 microcontrollers, each running at 100 MHz with 12KB SRAM, to form a 160-core GPU. While traditional GPUs rely on specialized silicon and architecture designed for graphics rendering, this approach uses many low-powered microcontrollers working in parallel, each controlling its own LED pixel, resulting in a 320x200 resolution display.
This unconventional design provides a unique perspective on GPU hardware by breaking down a complex GPU into thousands of simpler cores that collectively perform rendering tasks. However, it remains modest compared to commercial GPUs in both resolution and performance.
What are the practical benefits and limitations of this DIY GPU?
The project demonstrates the feasibility of building parallel computing clusters from affordable, off-the-shelf RISC-V microcontrollers, presenting a new angle on cost and scalability. The use of these inexpensive MCUs, sourced from general suppliers, showcases a path for enthusiasts and engineers to experiment with custom parallel processors without huge budgets.
Despite its impressive scale, the build faces significant challenges:
- Performance bottlenecks: The serial communication interface limits data throughput, making high-resolution, real-time graphics rendering difficult.
- Power efficiency: Each microcontroller operates at low power, but the cumulative energy usage rises with thousands of units.
- Resolution constraints: The 320x200 output is very modest compared to standard GPUs, limiting its applicability for mainstream graphics work.

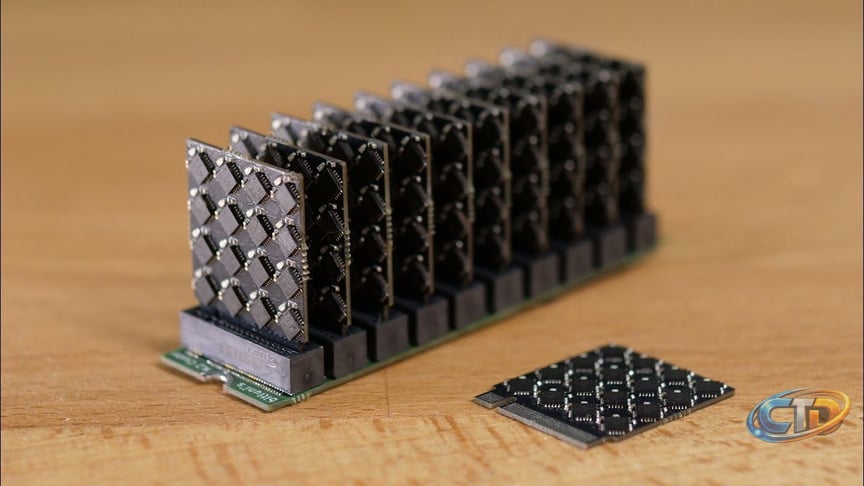

- Complexity of assembly and maintenance: Managing thousands of microcontrollers on multiple PCB blades can be complex and time-consuming.
On the upside, the cluster's ability to perform cryptographic hashing more efficiently per watt than a typical desktop CPU opens potential beyond graphics, such as distributed computation or specialized workloads that benefit from massive parallelism.
How does this DIY GPU impact current and future GPU technology?
This project highlights that GPUs don't necessarily require traditional architectures or expensive fabrication techniques to perform parallel computations. It suggests alternative design paradigms leveraging many simple cores coordinated to tackle rendering and computational problems.
For users and developers, it emphasizes the distinction between raw parallelism and optimized architecture—commercial GPUs achieve superior results by balancing core design, memory hierarchy, and interconnectivity, not just the number of cores.
Looking forward, such explorations may inspire niche hardware configurations for specific tasks, especially in low-power and customizable computing environments. However, for mainstream gaming or AI workloads, traditional GPUs remain superior in speed, integration, and efficiency.
Key takeaway: What should users understand about DIY parallel computing clusters?
This ambitious project demystifies GPU design by demonstrating that thousands of simple RISC-V microcontrollers can collectively perform GPU functions—albeit in limited fashion. It underscores the trade-offs between complexity, cost, resolution, and performance inherent in cluster-based GPUs.
While not a practical GPU replacement today, the design points to interesting possibilities for customized hardware solutions in power-sensitive or experimental computing projects. For enthusiasts, it offers a blueprint to explore computing parallelism creatively. For mainstream users, it explains why traditional GPUs remain dominant: optimized hardware and interfaces matter just as much as core count.
